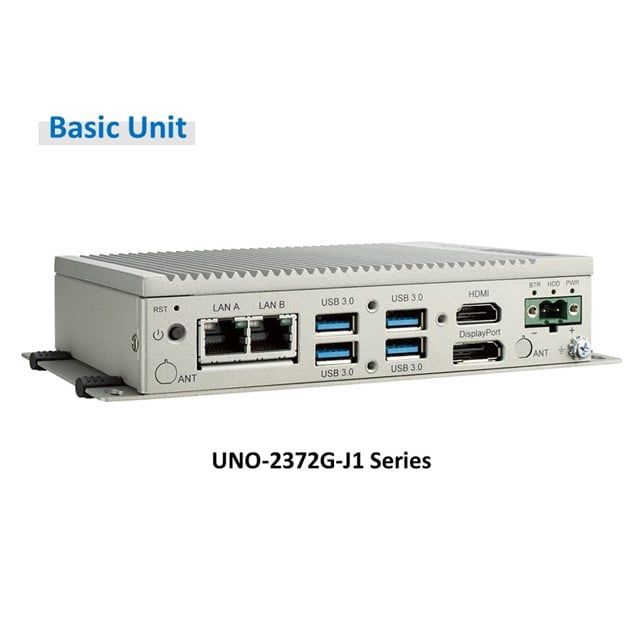

Advantech Intel Atom E3845/ Celeron J1900 Small-Size Modular Box Platform (UNO-2372G-J121AU)

SKU: UNO-2372G-J121AU Kategori: Advantech, Embedded Automation Computers, Embedded Box Computers, IoT / Industrial Tag: advantech

Deskripsi

Category	Attribute	Value
Hardware	Certification	CE, FCC, UL, CCC, BSMI
Hardware	CPU	Intel® Celeron® J3455 1.5 Ghz Quad-Core
Hardware	Graphics Engine	Intel® HD Graphics
Hardware	Hardware Security	TPM 2.0
Hardware	Memory	1 x SO-DIMM Memory with 4 GB DDR3L 1866MHz
Hardware	OS Support	Microsoft® Windows 10 LTSC, Linux
Hardware	Power Input	10~36 VDC
Hardware	Storage	1 x mSATA (shared with mPCIe), 1 x 2.5″ SSD/HDD bay
I/O Interface	Audio	Line-Out
I/O Interface	Displays	1 x HDMI, 1 x DP
I/O Interface	Expansion	2 x Full-size mPCIe Slot
I/O Interface	LAN Ports	2 x 10/100/1000 Mbps
I/O Interface	Power Connector	1 x 2-Pin Terminal Block
I/O Interface	Serial Ports	4 x RS-232/422/485
I/O Interface	USB Ports	4 x USB 3.0
Environment	Ingress Protection	IP40
Environment	Operating Temperature	-20~60 °C (-4~140 °F)
Environment	Relative Humidity	10~95% RH (non-condensing)
Environment	Shock Protection	50 G, half sine
Environment	Storage Temperature	-40~85 °C (-40~185 °F)
Environment	Vibration Protection	2 Grms, random
Mechanical	Dimension (W x H x D)	150 x 105 x 35 mm
Mechanical	Enclosure	Aluminum housing
Mechanical	Weight (Net)	1.1 kg (2.4 lb)

Informasi Tambahan

Brand	Advantech
