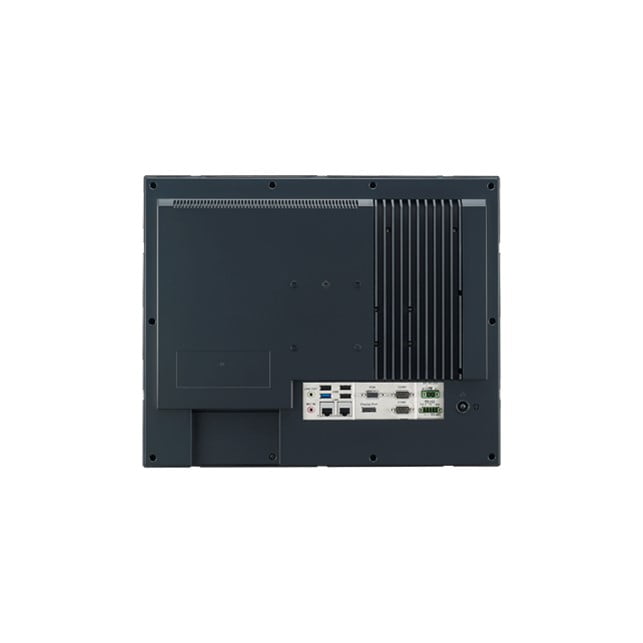

AdvantechIntel Atom E3845(1.91G),17″ flat panel W/R-TOUCH (PPC-3170-RE4BU)
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| Hardware | Certification | CE, FCC Class A, BSMI, CB/UL, CCC, UKCA |
| Hardware | CPU | Intel® Atom™ E3845 1.91GHz Quad-Core |
| Hardware | Ethernet | Intel® i210-IT GbE |
| Hardware | Expansion | 1 x Mini PCIe, 1 x PCI, 1 x PCIe x1, 1 x Cfast; 1 x CF Card; 1 x Internal USB dongle, 2 x RS-232 or 1 x RS-232, 1 x GPIO |
| Hardware | I/O | 1 x RS-422/485, 4 x RS-232, 1 x GPIO, 1 x USB 3.0, 3 x USB 2.0, 1 x VGA, 1 x DP, 1 x Line Out, 1 x Mic In |
| Hardware | LAN | 2 x 10/100/1000 Mbps |
| Hardware | Memory | 1 x DDR3L SO-DIMM Slot |
| Hardware | OS Support | Microsoft® Windows 7, Microsoft® Windows 10, Microsoft® WES7P, Microsoft® WEC7, Microsoft® Windows 10 IOT LTSC, Linux, Android |
| Hardware | Power Consumption | 34 W @ 19 VDC |
| Hardware | Power Input | 9~32 VDC |
| LCD Display | Backlight Life (hrs) | 50,000 |
| LCD Display | Display Size | 17″ |
| LCD Display | Luminance (cd/m2) | 350 |
| LCD Display | Max. Resolution | 1280 x 1024 |
| LCD Display | Viewing Angle (H/V°) | 160/140 |
| I/O Interface | Audio | Line-Out, Microphone |
| I/O Interface | Displays | 1 x VGA, 1 x DP |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| I/O Interface | Serial Ports | 4 x RS-232, 1 x isolated RS-422/485 (Terminal Block) |
| Environment | Ingress Protection | Front Panel IP65 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Relative Humidity | 10~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~60°C (-40~140°F) |
| Environment | Vibration Protection | 1 Grms, random |
| Touchscreen | Touch Type | 5-wire resistive |
| Mechanical | Dimension (W x H x D) | 437 x 357 x 57 mm |
| Mechanical | Enclosure | Die-cast aluminum alloy, PC + ABS |
| Mechanical | Mounting | Stand, Wall, VESA, Panel |
| Mechanical | Weight (Net) | 6.3 kg (13.89 lb) |
| USB Vision | Connector | 1 x USB 3.0 Type A, 3 x USB 2.0 Type A |
