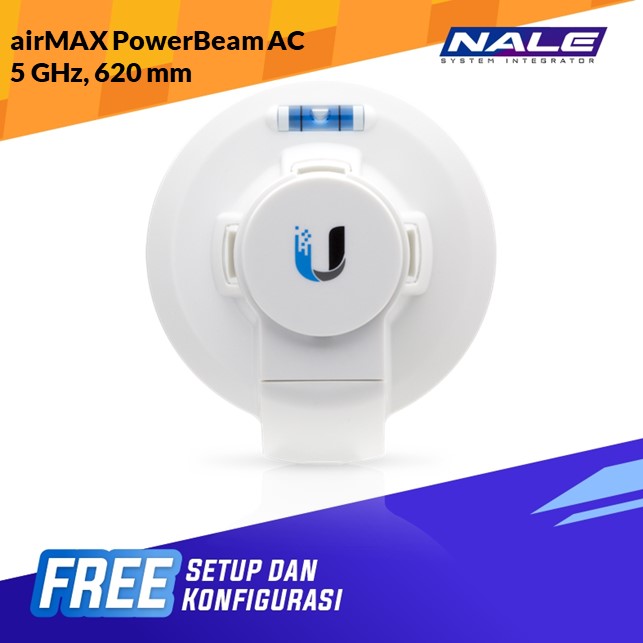

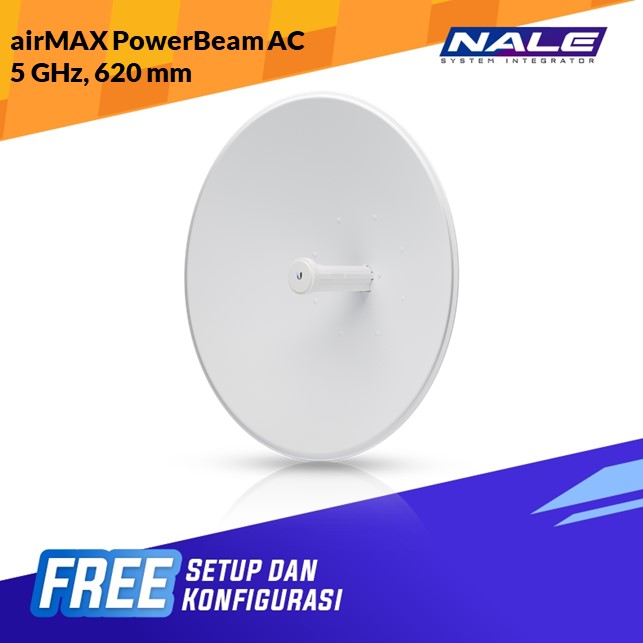

Ubiquiti airMAX PowerBeam AC 5 GHz, 620 mm

Rp4.558.770

  • Highly Efficient Antenna Beam Performance
  • Custom Ubiquiti® airMAX® ac Processor
  • Up to 450+ Mbps Real TCP/IP Throughput
  • Innovative Snap and Lock Assembly
  • Proprietary InnerFeed™ Technology
Tanya Via WhatsApp
SKU: PBE-5AC-620 Kategori: Tag: ,
Deskripsi

Deskripsi Ubiquiti airMAX PowerBeam AC 5 GHz, 620 mm

Bridge airMAX® ac Kinerja Tinggi Menggabungkan desain reflektor piringan dengan teknologi airMAX® ac yang dipatenkan, PowerBeam ™ ac ideal untuk penerapan CPE yang membutuhkan kinerja maksimum.

Spesifikasi singkat:

Power Supply 24V, 0.5A Gigabit PoE
Max. Power Consumption 8.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20-26VDC
Operating Frequency MHz
WorldwideUSA
5150 – 5875
U-NII-1: 5150 – 5250
U-NII-2A: 5250 – 5350
U-NII-2C: 5470 – 5725
U-NII-3: 5725 – 5850
Gain 29 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2, 16 MB Flash
LEDs (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR 1.6:1
Channel Sizes PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Wind Loading Radome Excluded: 1510 N @ 200 km/h (340 lbf @ 125 mph)
Radome Included: 1830 N @ 200 km/h (411 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
